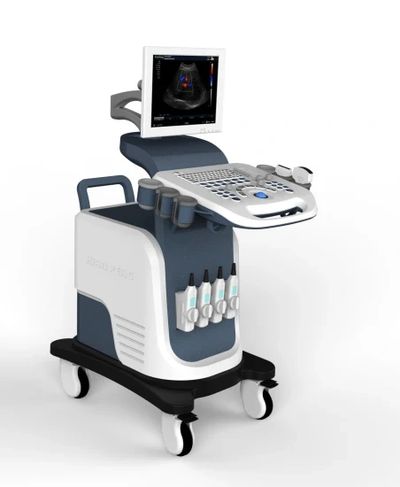

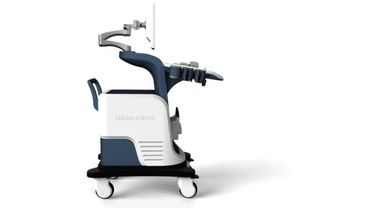

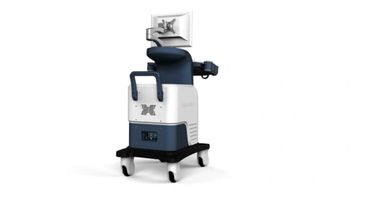

JT-1 Color Doppler Ultrasonic Diagnostic System

 - Application
Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc

-Displaying mode
B\2B\4B\left&right B|M\B|D\PW\M\B mode part zoom; B|C|D\B|C|M\B|C duplex\PW\CFM\CPA

-Signal processing
Full-digital  beam forming, dynamic filter, orthogonal demodulating, space-time  filter, dynamic real-time receiving focusing, RDA, DRA, spectral  processing, CFM processing

-Image processing
THI,  speckle-reduction, color coder, frame averaging, micro- angle  adjustment, wall filter, 256 grey scale, scanning angle/width control,  composit processing of tissue and blood flow image

-General measurement
B mode: Distance, angle, perimeter and area (ellipse method, Trace method), volume, histogram, cross-section diagram
M mode: Cardiac rate, time, distance, speed.

-Measurement & report packages
GYN(four  edition for GA calculation), cardiac, vascular, urology, andriatrics,  peripheral vascular, multiple births, orthopedic surgery and etc.

-Storage function
Probe parameter, image, cine loop, measurement data and report

-Cine loop
Operated by automatically and manually, speed optional, searching cine loop, forward/ backward cine loop

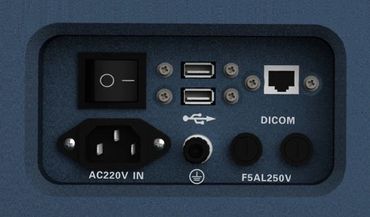

- Input/output interface
VGA, network, USB, VIDEO, parallet communication port, serial communication port

-Standard configuration
Main unit, 3.5MHz convex probe, 19" LCD monitor, 3 probe connectors, DVD-RW, 6 USB ports, free arm,

-Optional configuration
3.5MHz  micro-convex probe, 7.8MHz high-frequency linear probe, 7.0MHz  transvaginal probe, color video printer, laser printer, DICOM3.0, 4D  package

 Technical Specification :
Operating mode: B,2B,4B,B/M,M,B/C/D,B/D,CW,PW,velocity,power(direction),histogram,triples/duplex,etc.
Software packages:
OB,GYN,small parts,urology,anthology,cardiac,vessel

Standard configuration:
main unit
3.5Mhz convex probe
4D volume probe
19''LCD display with 10'' touch screen
USB port
DICOM 3.0
DVD-RW

Optional configuration:
6.5mhz R10 transvaginal probe
7.5mhz linear probe
2.5mhz phased array probe
CW function
Elastography
Panoramic
Printer

 Classification: Imaging Diagnostic Equipment   Type: Ultrasound Scanner   Certification: CE, ISO13485   Group: Adult and Children   Monitor: 19"LCD with Free Arm   Origin: China
